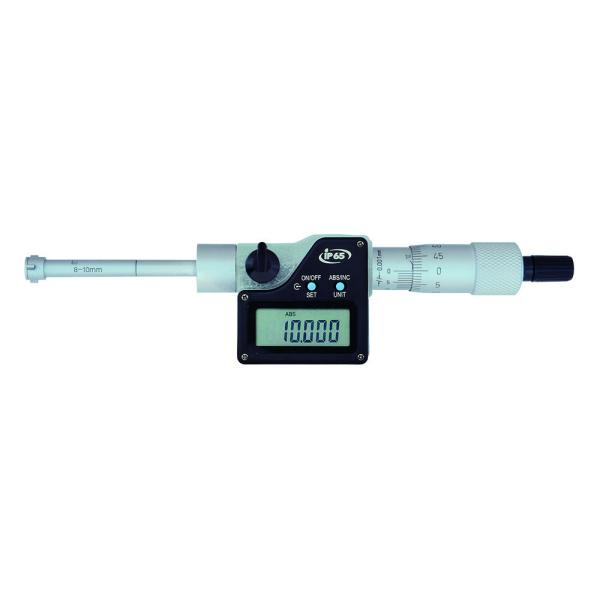

8-10mm Electronic 3 Point Inside Micrometer with IP65 Protection Degree
Quick Detail:
1. Protection level IP65.
2. Digital three-point micrometer centering self and aligning self.
3. Measurement can be taken closer to the bottom of the blind bore, and can be taken into a deep hole
with an extension rod.
4. ON/OFF button.
5. Zero setting at any position.
6. Metric/inch conversion.
7. Absolute/Incremental measurement conversion.
8. Origin set for absolute measurement.
9. Carbide-tipped contacts points, ratchet stop.
10. Supplied with setting rings.
11. Supplied in fitted case.
Description:
This is more higher protection level IP65 digital three-point internal micrometer, still work stably in the harsh workshop environment,
and the characteristics of oil, water and dust resistance make it suitable for various complex working environments.
Supplied with measuring range including 6-8mm,8-10mm,10-12mm, with resolution 0.001mm.
This three-point measurement design allows the micrometer to be more accurate and stable when measuring blind
and through holes. With three-point contact, the errors in the measurement process can be avoided more effectively,
thus improving the accuracy of the measurement results.
Specification:
Metric/Inch
| Order No. |
Measuring Range |
Accuracy |
Resolution |
Setting rings |
L1 |
A |
Extension rods |
| KM-2342-8 |
6-8mm |
±0.004mm |
0.001mm |
Φ6mm |
53.5mm |
0.5mm |
100mm |
| KM-2342-10 |
8-10mm |
±0.004mm |
0.001mm |
Φ8mm |
53.5mm |
0.5mm |
100mm |
| KM-2342-12 |
10-12mm |
±0.004mm |
0.001mm |
Φ10mm |
53.5mm |
0.5mm |
100mm |
Inch/Metric
| Order No. |
Measuring Range |
Accuracy |
Resolution |
Setting rings |
L1 |
A |
Extension rods |
| KM-2342-0.35 |
0.275-0.35″ |
±0.00016″ |
0.00005″ |
0.275″ |
2.18″ |
0.02″ |
4″ |
| KM-2342-0.425 |
0.35-0.425″ |
±0.00016″ |
0.00005″ |
0.35″ |
2.18″ |
0.02″ |
4″ |
| KM-2342-0.5 |
0.425-0.5″ |
±0.00016″ |
0.00005″ |
0.5″ |
2.18″ |
0.02″ |
4″ |
Precautions:
1. Do not subject the instrument to blows or knocks. Do not drop it or apply excessive force to it.
2. Do not disassemble the instrument. Do not press the key with a pointed object.
3. Do not use or store the instrument under direct sunlight, or in an excessively hot or cold place.
4. Do not let the instrument near strong magnetic field or high voltage.
5. Use a soft or a cotton swad that is dry to wipe stains off the instrument. Do not use organic solvent
such as benzene.
6. Clean measuring faces of the instrument before use it.
7. Remove the battery if the instrument not used for a long time.
Applications:
Digital three-point internal micrometer is mainly used to measure the holes, slotted hole, etc. It is widely used in machinery
manufacturing, automobile manufacturing, aerospace, electronic components and other industrial fields.
With its high measurement accuracy, easy to use and simple operation, it has become one of the important tools
for measuring bore diameter.
